The AquaStation allows the use of optional modules, pay only for what you really need. You can also extend the functionality of your AquaStation at any time.



Base Station

220v Relay

Energy Analyzer

Dimmer LED

PH Probe

Wireless NIC

Additional Temperature Probe

Flooding Probe

BUS Hub

LCD Display

LCD TouchScreen Display

Remote IR Control








Base Station

 The Base Station, or AquaStation, is the main component to which you can connect the other modules. It comes in three models:

 Model

Ram

 CPU

Drive Capacity

Drive Performance

 AquaStation AS08A

512Mb

 700Mhz

8Gb

30Mb/s

 AquaStation AS16A

1024Mb

900Mhz

16Gb

45Mb/s



With a more capable AquaStation, you can store a greater number of information and historical values. With a faster acquacontroller, in addition, data reading and writing will be quicker, through a more fluid interface and instantaneous controls. With superior quality of the support disc and with greater MTBF (mean duration).



AC Base










220V Relay

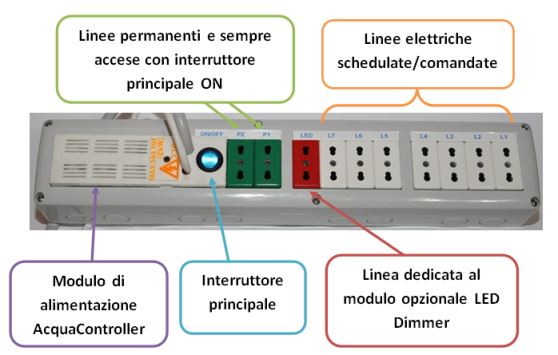

The module "Timer 220v" provides a schedulable 8x 220v electrical lines. The lines are:
7 lines schedulable or manageable by Controller Software (see below);
1 Red line, exclusive to the "LED DimmerOptional Module (you can not pluganything elseother than thisform);

2 Green Permanentlines, always active, useful to thebackupheater,to the filter andto other apparatusesthat must remainalways lit;



220



Difference between scheduled lines and controlled lines

The seven lines can schedule (Timer) the timing for power on and off:





or manage the automatically controlled and triggered operations by reading values:





In Menu "Thresholds of Intervention" you can check what the system is connected to:
The heater (not included)
The chiller (not included)
The solenoid valve of CO2 (not included)



Properly configuring the thresholds of intervention, will allow to command the AquaStation's electrical outlets, being able to switch them on or off as needed. The most frequent example is that of the heater: setting the power line where it resides, you can turn it on when the temperature drops below a certain threshold.










Energy Analyzer

This module allows the calculation of energy consumption in relation to LIGHTS, HEATERS, OUTDOOR TEMPERATURE and anything connected to the device. The analysis takes place via an ammeter capable of graphing consumption related to the devices turned on at that time. Analysing daily, weekly or monthly consumption can help saving energy.



 Watt



If you do not have the optional module, it is still possible to estimate the energy consumption by filling the screen "Esteemed Energy Consumption"



stima consumi






Dimmer LED

Those AquaStation equipped with 12v LED lights provide a 10A power dedicated to illumination or PWM Controller.



or

The optional "LED Dimmer" allows you to control 4 independent 12v lines through a special menu, scheduling timing of sunrise and sunset and maximum brightness of the line (1-100%) in steps of about 0.4% (1/255).





The module includes the 12V-10A power supply for LEDDimmer dedicatedto lights, so it is notnecessary for your 12vLED to be self-powered.


The maximum load capacity is 10A and never greater than 4A per line.





If you have a PWM ceiling light compatible with MW LPF-25D power supplies,you cancontrol themusing the moduleDimmerPWMthatdoes not containthe power supplybutdeliversthe electronic controls for the PWM.




PH Probe

 This module provides:
pH probe
liquid preservation

on request and at no extra charge: calibration fluids


The use of the probe allows real-time reading of pH values, the ability to control a 220v solenoid valve (notincluded, optional220vsockets needed), to operateyourCO2 system(not included)andreceive emailalertfor pH values exceeding threshold.


The liquid preservation service acts in case of prolonged non-use or for return for calibration.


PH








Wireless NIC



The AquaStation is configured via a web interface, receives updates though the internet and sends alerts via email related to collected data (low temperature, insufficient heating, pH values exceeding threshold, exaggerated energy consumption...).

The base is equipped with a USB to RJ45 Ethernet 10 / 100Mbit; however, this module allows connection to a wireless network, thus avoiding to connect network cables to the module.

We always recommend connecting the device to a network provided with an internet connection (with or without wireless module).

List of not purchasable features without internet connection (WiFi or Wired connection):
System updates
• Sending alerts via email
Saving Configurations in cloud
Check anomalies in cloud
• Consultation of values from mobile devices
Dynamic Update signatures / banners containing values
Enable optional modules




The wireless module support the IEEE 802.11n (draft), IEEE 802.11g, IEEE 802.11b Data Rate: 802.11n: up to 150Mbps (downlink) and up to 150Mbps (uplink), 802.11g: 54/48/36 / 24/18/12/9/6 Mbps auto fallback, 802.11b: 11 / 5.5 / 2/1 Mbps auto fallback. 2.4GHz ISM frequency.

For safety reasons, the controller works exclusively through encrypted networks in WPA or WPA2, TKIP and AES. Open networks, like the WEP and WPA-Enterprise (with Radius Server) are not supported. The home and entry level access points are usually compatible with these settings.






Temperature additional probe

The AquaStation is able to:
Monitor the temperature by 1 or 2 redundant probes;
 Turn on and off heaters and coolers automatically;
Send alerts via email in case of excessive fluctuations, temperature probes with extremely different value, insufficient heater power (switched on for prolonged time);



With two redundant probes you can obtain an average value for the temperature (very useful in case of tanks above 300lt with different temperature zones) and realize whether there are calibration problems with any of the two probes.






Flooding Probe

A probe permanently detecting flooding or water reaching the alert level, or water inside the box analysis, that will send an email alert, and (if set) will turn on/off a 220v outlet.








Bus Hub

The following devices are connected to a "BUS" connector:
LED Dimmer module
Energy Analysis module
• LCD display
Conductivity module



The AquaStation has a BUS door, duplicated using the dedicated "Bus Hubaccessory.Thebushubextends to furthertwobus doors(three doors with the space of a single one).


It is also possible to set the bus in cascade.

bus






LCD Display

The LCD display provides a video information assessing the parameters checked in your aquarium. Green values indicate a measurement not trespassing safety threshold; red values call for attention to anomalous data.

Should one or more optional components fail sending measurements to the display, the abbreviation "NP" (not present) will be shown on screen.


Values exceeding alarm threshold will appear as a red field instead of usual green. The threshold is indicated in the "intervention thresholds" menu and corresponds to a specified tolerance limit above which the system will send email alerts.






LCD TouchScreen Display

Through the touchscreen display you can see graphics, give quick commands and set access to the network and to the cloud. The display is designed to let you immediately faults, alarms and problems in the acquarium.

Display TouchScreen   Display TouchScreen

Display TouchScreen      Display TouchScreen

 Display TouchScreen     Display TouchScreen








Remote IR Control

Remote IR Control can perform a shortcuts.

- 220v line on/off switching

- LED Dimming for all 4 lines

- Enabling and disabling timer

- Activate the "Aquarium Maintenance" for rapid starting of all the lights, even LED

It also has 4 configurable function keys as desired.

Telecomando
